Hydrogen Purification System Package of P25 Recovery Max

Key Activities:

AVEVA E3D Modelling
Piping Detail Engineering Deliverables
Piping Stress Analysis
Civil & Structural Design Calculations & Drawings
Electrical Detail Engineering Deliverables
Instrumentation and F&G Detail Engineering Deliverables
Technical Bid Evaluation and Vendor Document Review
SmartPlant P&ID Drafting Services
SmartPlant Instrumentation Services
As-Built Drawings

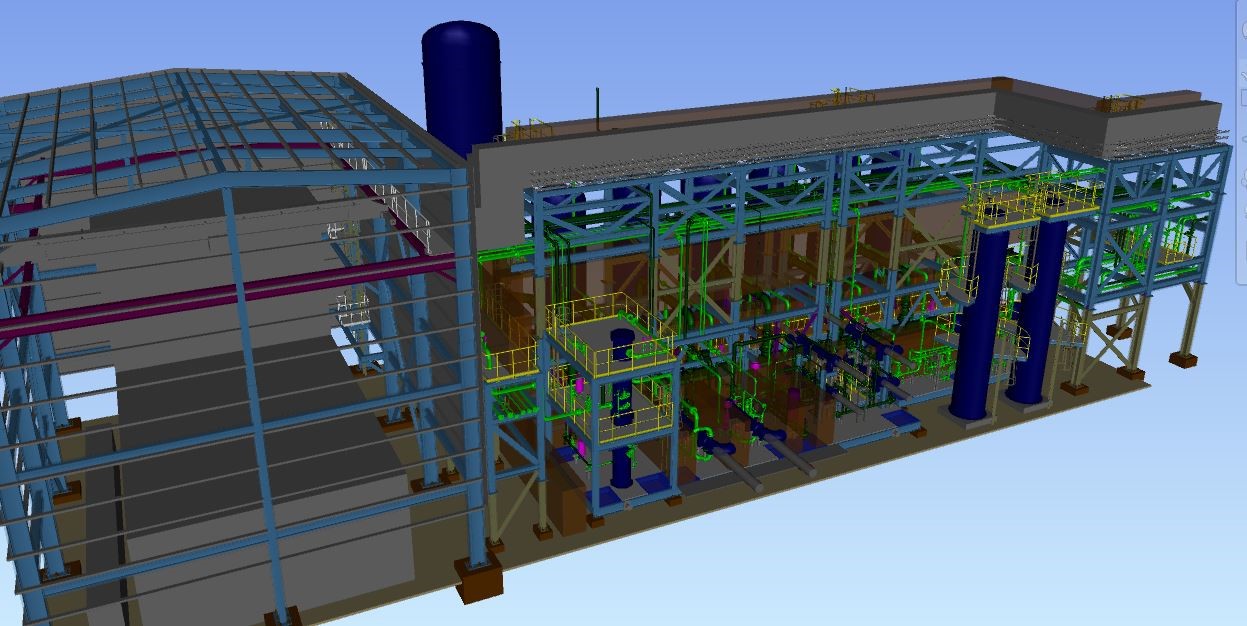

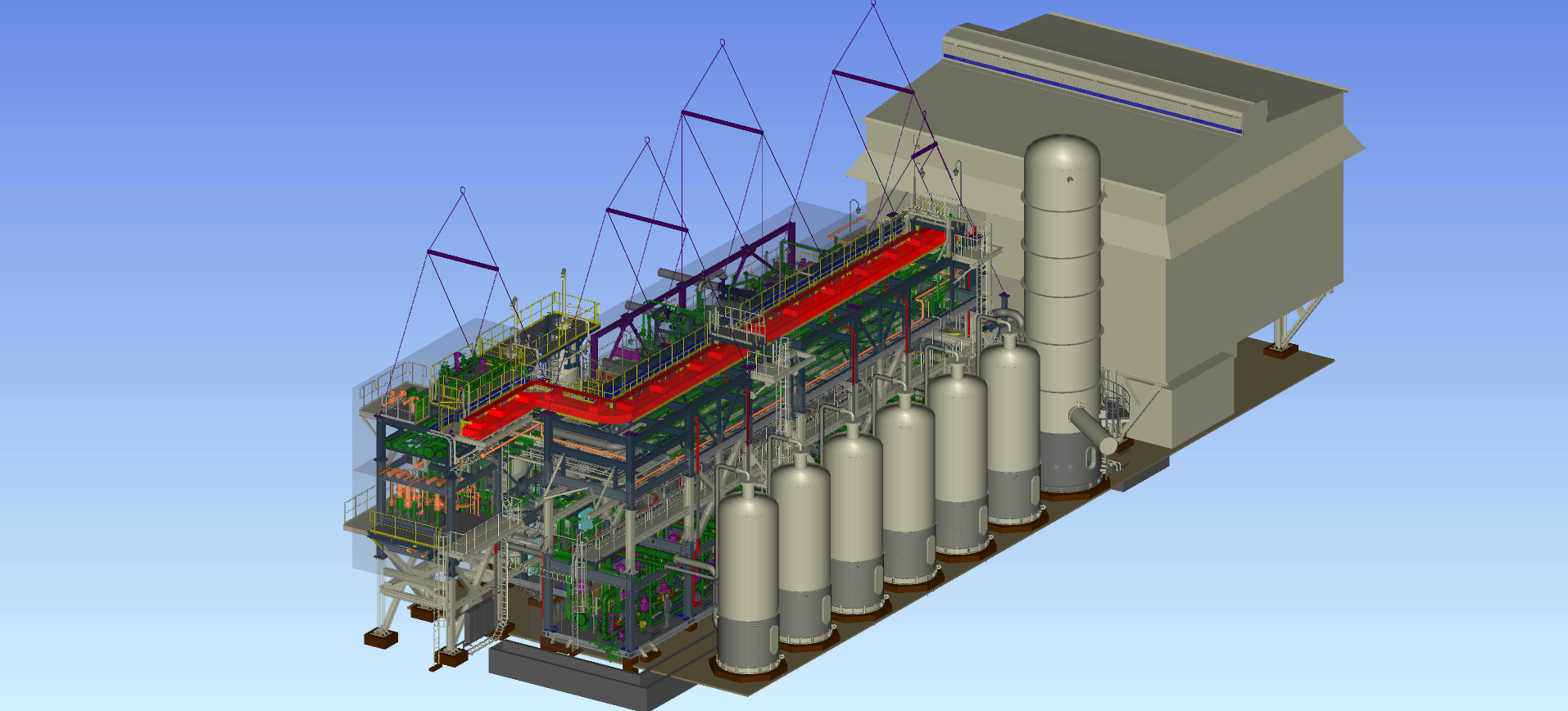

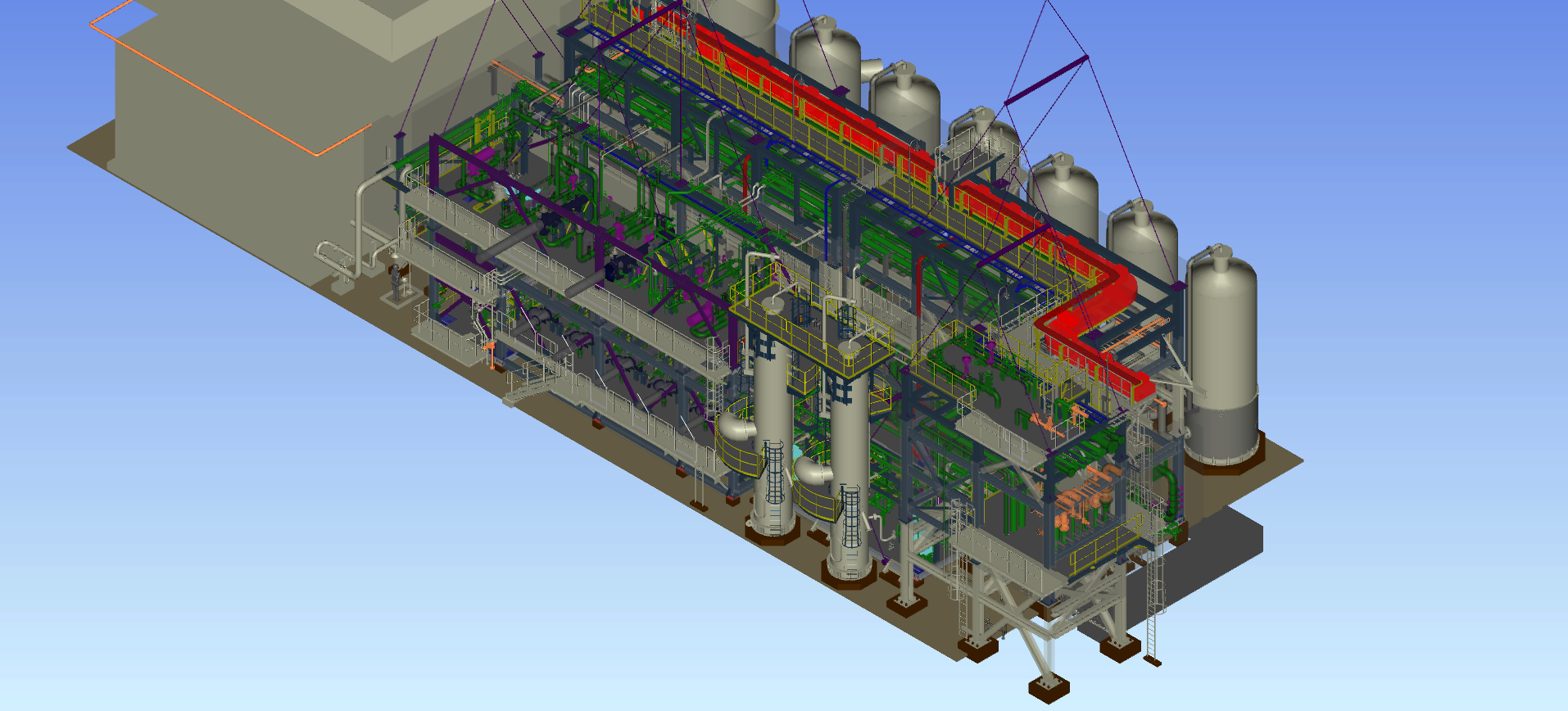

Multidisciplinary Detailed Design Engineering services including AVEVA E3D Modeling in the disciplines of Process, Piping, Civil & Structural, Electrical, Instrumentation and Fire & Gas. Our scope included Preparation of As-Built PID’s (one time Markup) in SPPID, Drawings and Documentation includes the Isometrics, MTO’s, layout drawings, Piping Flexibility Analysis, Calculation of wind and seismic load coefficients as project site condition, Structural Design Calculations for whole package which constitutes of PSA + Pipe Rack Area, Compressor Shelter + sub-pipe way, Battery Limit structure, Membrane area, SGB area including Skid In-place, Lifting and Transportation analysis, Preparation of standard Connection Design calculations and Design Drawings, Preparation of Lifting Drawings Lighting design, Preparation of F&G Datasheet based on F&G Consultant input.

Project Name : Hydrogen Purification System Package of P25 Recovery Max Unit

Owner: IOCL Panipat Refinery

Project Location: India

Duration: 9 Months
